    LAN NIC - Errors IN - Low Volume Any Concern

    Scheduled Pinned Locked Moved Hardware
    16 Posts 2 Posters 968 Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • N
      ngr2001
      last edited by

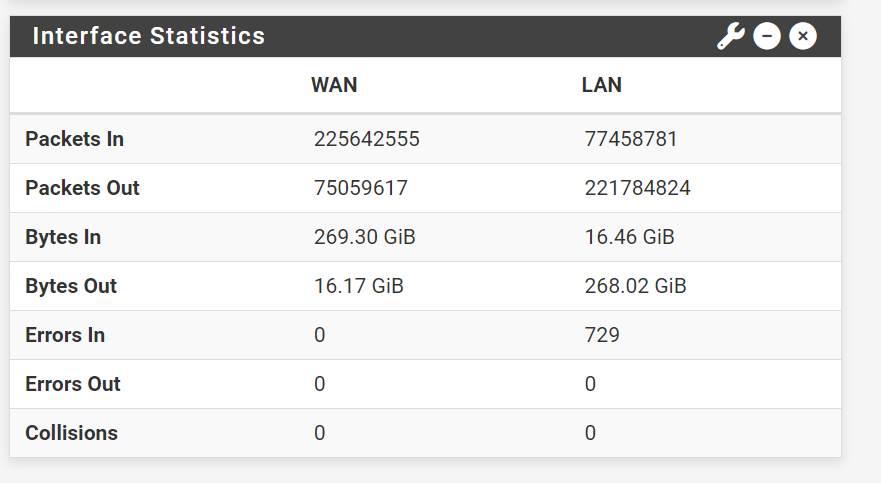

      I have a very small volume of "Errors In" on the LAN NIC. Both the WAN and LAN are at 1Gb speeds. Should I be concerned or is this cosmetic ?


      1 Reply Last reply Reply Quote 0
      • stephenw10S
        stephenw10 Netgate Administrator
        last edited by

        I would not be, not at that rate. Especially if they don't increase continually.

        That could be just from a relink at some point.

        N 1 Reply Last reply Reply Quote 0
        • N
          ngr2001 @stephenw10
          last edited by

          @stephenw10

          What do you mean by a relink ?

          Something on my lan side ?

          1 Reply Last reply Reply Quote 0
          • stephenw10S
            stephenw10 Netgate Administrator
            last edited by

            Like a cable was replugged or whatever it connected to was rebooted. You can get some errors when happens.

            So if you see a bunch of errors initially and then nothing additional that's different to seeing, say, a few errors per hour ongoing.

            But either way I would not consider 348 errors out of 15M a particularly worrying amount. Even if I would prefer to see zero there.

            N 1 Reply Last reply Reply Quote 0
            • N
              ngr2001 @stephenw10
              last edited by

              @stephenw10

              It seems like its slowly but steadily increasing for sure. I work from home and all my other devices are asleep. I don't normally look at these stats but I recently disabled the onboard X540 Intel NIC in favor of a new PCIe X550-T2 Nic. So naturally I've been looking over logs and settings and have been seeing this.

              Would a packet capture help here, anything else I could be looking for as a sign.

              I currently have both the WAN and LAN at 1Gb.


              1 Reply Last reply Reply Quote 0
              • stephenw10S
                stephenw10 Netgate Administrator
                last edited by

                Hmm, what is it connected to? Does that show errors out?

                The other thing to check is the sysctl stats for the interface. The ix driver quite recently started reporting all error types in the netstat output there so some errors that were always present suddenly appeared to the user! There are a few places in the output of sysctl dev.ix.3
                For example:

                dev.ix.3.mac_stats.rx_missed_packets: 0
dev.ix.3.mac_stats.rec_len_errs: 0
dev.ix.3.mac_stats.remote_faults: 0
dev.ix.3.mac_stats.local_faults: 2
dev.ix.3.mac_stats.short_discards: 0
dev.ix.3.mac_stats.byte_errs: 0
dev.ix.3.mac_stats.ill_errs: 0
dev.ix.3.mac_stats.crc_errs: 0
dev.ix.3.mac_stats.rx_errs: 0

                Your NIC may not be ix3 obviously.

                N 1 Reply Last reply Reply Quote 0
                • N
                  ngr2001 @stephenw10
                  last edited by stephenw10

                  @stephenw10

                  Its connected to a Brocade ICX-7250 switch on port 48 at 1Gb. That port is only reporting 2 Errors since last reboot which was a long time ago.


                  Also, I rebooted PF since last post, my error count in GUI looks tied to this number,
                  dev.ix.1.mac_stats.rx_errs: 129

                  sysctl dev.ix.1
dev.ix.1.dmac: 0
dev.ix.1.fw_version: Option ROM V19-b5-p15 eTrack 0x80001509 PHY FW V523
dev.ix.1.enable_aim: 0
dev.ix.1.advertise_speed: 7
dev.ix.1.fc: 3
dev.ix.1.mac_stats.tx_frames_1024_1522: 10864334
dev.ix.1.mac_stats.tx_frames_512_1023: 347030
dev.ix.1.mac_stats.tx_frames_256_511: 193161
dev.ix.1.mac_stats.tx_frames_128_255: 181640
dev.ix.1.mac_stats.tx_frames_65_127: 769638
dev.ix.1.mac_stats.tx_frames_64: 45087
dev.ix.1.mac_stats.management_pkts_txd: 0
dev.ix.1.mac_stats.mcast_pkts_txd: 1103
dev.ix.1.mac_stats.bcast_pkts_txd: 59
dev.ix.1.mac_stats.good_pkts_txd: 12400890
dev.ix.1.mac_stats.total_pkts_txd: 12400890
dev.ix.1.mac_stats.good_octets_txd: 16169878821
dev.ix.1.mac_stats.checksum_errs: 2
dev.ix.1.mac_stats.management_pkts_drpd: 0
dev.ix.1.mac_stats.management_pkts_rcvd: 115970
dev.ix.1.mac_stats.recv_jabberd: 0
dev.ix.1.mac_stats.recv_oversized: 0
dev.ix.1.mac_stats.recv_fragmented: 0
dev.ix.1.mac_stats.recv_undersized: 0
dev.ix.1.mac_stats.rx_frames_1024_1522: 1735379
dev.ix.1.mac_stats.rx_frames_512_1023: 179449
dev.ix.1.mac_stats.rx_frames_256_511: 61323
dev.ix.1.mac_stats.rx_frames_128_255: 170015
dev.ix.1.mac_stats.rx_frames_65_127: 3313453
dev.ix.1.mac_stats.rx_frames_64: 65551
dev.ix.1.mac_stats.bcast_pkts_rcvd: 4956
dev.ix.1.mac_stats.mcast_pkts_rcvd: 111014
dev.ix.1.mac_stats.good_pkts_rcvd: 5525170
dev.ix.1.mac_stats.total_pkts_rcvd: 5527181
dev.ix.1.mac_stats.good_octets_rcvd: 2926516254
dev.ix.1.mac_stats.total_octets_rcvd: 2926663479
dev.ix.1.mac_stats.xoff_recvd: 0
dev.ix.1.mac_stats.xoff_txd: 0
dev.ix.1.mac_stats.xon_recvd: 0
dev.ix.1.mac_stats.xon_txd: 0
dev.ix.1.mac_stats.rx_missed_packets: 0
dev.ix.1.mac_stats.rec_len_errs: 129
dev.ix.1.mac_stats.remote_faults: 0
dev.ix.1.mac_stats.local_faults: 1
dev.ix.1.mac_stats.short_discards: 0
dev.ix.1.mac_stats.byte_errs: 0
dev.ix.1.mac_stats.ill_errs: 0
dev.ix.1.mac_stats.crc_errs: 0
dev.ix.1.mac_stats.rx_errs: 129
dev.ix.1.queue7.rx_discarded: 0
dev.ix.1.queue7.rx_copies: 0
dev.ix.1.queue7.rx_bytes: 37477124
dev.ix.1.queue7.rx_packets: 324418
dev.ix.1.queue7.rxd_tail: 833
dev.ix.1.queue7.rxd_head: 834
dev.ix.1.queue7.irqs: 1190253
dev.ix.1.queue7.interrupt_rate: 31250
dev.ix.1.queue7.tx_packets: 1478205
dev.ix.1.queue7.tso_tx: 0
dev.ix.1.queue7.txd_tail: 2012
dev.ix.1.queue7.txd_head: 2012
dev.ix.1.queue6.rx_discarded: 0
dev.ix.1.queue6.rx_copies: 0
dev.ix.1.queue6.rx_bytes: 566921708
dev.ix.1.queue6.rx_packets: 640000
dev.ix.1.queue6.rxd_tail: 1023
dev.ix.1.queue6.rxd_head: 1024
dev.ix.1.queue6.irqs: 1007186
dev.ix.1.queue6.interrupt_rate: 31250
dev.ix.1.queue6.tx_packets: 971599
dev.ix.1.queue6.tso_tx: 0
dev.ix.1.queue6.txd_tail: 1840
dev.ix.1.queue6.txd_head: 1840
dev.ix.1.queue5.rx_discarded: 0
dev.ix.1.queue5.rx_copies: 0
dev.ix.1.queue5.rx_bytes: 199376846
dev.ix.1.queue5.rx_packets: 330272
dev.ix.1.queue5.rxd_tail: 543
dev.ix.1.queue5.rxd_head: 544
dev.ix.1.queue5.irqs: 855052
dev.ix.1.queue5.interrupt_rate: 31250
dev.ix.1.queue5.tx_packets: 734899
dev.ix.1.queue5.tso_tx: 0
dev.ix.1.queue5.txd_tail: 1489
dev.ix.1.queue5.txd_head: 1489
dev.ix.1.queue4.rx_discarded: 0
dev.ix.1.queue4.rx_copies: 0
dev.ix.1.queue4.rx_bytes: 234339891
dev.ix.1.queue4.rx_packets: 756201
dev.ix.1.queue4.rxd_tail: 488
dev.ix.1.queue4.rxd_head: 489
dev.ix.1.queue4.irqs: 1332345
dev.ix.1.queue4.interrupt_rate: 31250
dev.ix.1.queue4.tx_packets: 1101650
dev.ix.1.queue4.tso_tx: 0
dev.ix.1.queue4.txd_tail: 1280
dev.ix.1.queue4.txd_head: 1280
dev.ix.1.queue3.rx_discarded: 0
dev.ix.1.queue3.rx_copies: 0
dev.ix.1.queue3.rx_bytes: 614802605
dev.ix.1.queue3.rx_packets: 673141
dev.ix.1.queue3.rxd_tail: 1396
dev.ix.1.queue3.rxd_head: 1397
dev.ix.1.queue3.irqs: 986840
dev.ix.1.queue3.interrupt_rate: 31250
dev.ix.1.queue3.tx_packets: 749380
dev.ix.1.queue3.tso_tx: 0
dev.ix.1.queue3.txd_tail: 135
dev.ix.1.queue3.txd_head: 135
dev.ix.1.queue2.rx_discarded: 0
dev.ix.1.queue2.rx_copies: 0
dev.ix.1.queue2.rx_bytes: 395043603
dev.ix.1.queue2.rx_packets: 748841
dev.ix.1.queue2.rxd_tail: 1320
dev.ix.1.queue2.rxd_head: 1321
dev.ix.1.queue2.irqs: 1528743
dev.ix.1.queue2.interrupt_rate: 31250
dev.ix.1.queue2.tx_packets: 1509099
dev.ix.1.queue2.tso_tx: 0
dev.ix.1.queue2.txd_tail: 734
dev.ix.1.queue2.txd_head: 734
dev.ix.1.queue1.rx_discarded: 0
dev.ix.1.queue1.rx_copies: 0
dev.ix.1.queue1.rx_bytes: 369176533
dev.ix.1.queue1.rx_packets: 401454
dev.ix.1.queue1.rxd_tail: 45
dev.ix.1.queue1.rxd_head: 46
dev.ix.1.queue1.irqs: 912677
dev.ix.1.queue1.interrupt_rate: 31250
dev.ix.1.queue1.tx_packets: 704081
dev.ix.1.queue1.tso_tx: 0
dev.ix.1.queue1.txd_tail: 1701
dev.ix.1.queue1.txd_head: 1701
dev.ix.1.queue0.rx_discarded: 0
dev.ix.1.queue0.rx_copies: 0
dev.ix.1.queue0.rx_bytes: 477562058
dev.ix.1.queue0.rx_packets: 1550098
dev.ix.1.queue0.rxd_tail: 1809
dev.ix.1.queue0.rxd_head: 1810
dev.ix.1.queue0.irqs: 3188399
dev.ix.1.queue0.interrupt_rate: 31250
dev.ix.1.queue0.tx_packets: 5152046
dev.ix.1.queue0.tso_tx: 0
dev.ix.1.queue0.txd_tail: 313
dev.ix.1.queue0.txd_head: 313
dev.ix.1.link_irq: 2
dev.ix.1.watchdog_events: 0
dev.ix.1.dropped: 0
dev.ix.1.iflib.rxq7.rxq_fl0.buf_size: 2048
dev.ix.1.iflib.rxq7.rxq_fl0.credits: 2047
dev.ix.1.iflib.rxq7.rxq_fl0.cidx: 834
dev.ix.1.iflib.rxq7.rxq_fl0.pidx: 833
dev.ix.1.iflib.rxq7.cpu: 14
dev.ix.1.iflib.rxq6.rxq_fl0.buf_size: 2048
dev.ix.1.iflib.rxq6.rxq_fl0.credits: 2047
dev.ix.1.iflib.rxq6.rxq_fl0.cidx: 1024
dev.ix.1.iflib.rxq6.rxq_fl0.pidx: 1023
dev.ix.1.iflib.rxq6.cpu: 12
dev.ix.1.iflib.rxq5.rxq_fl0.buf_size: 2048
dev.ix.1.iflib.rxq5.rxq_fl0.credits: 2047
dev.ix.1.iflib.rxq5.rxq_fl0.cidx: 578
dev.ix.1.iflib.rxq5.rxq_fl0.pidx: 577
dev.ix.1.iflib.rxq5.cpu: 10
dev.ix.1.iflib.rxq4.rxq_fl0.buf_size: 2048
dev.ix.1.iflib.rxq4.rxq_fl0.credits: 2047
dev.ix.1.iflib.rxq4.rxq_fl0.cidx: 489
dev.ix.1.iflib.rxq4.rxq_fl0.pidx: 488
dev.ix.1.iflib.rxq4.cpu: 8
dev.ix.1.iflib.rxq3.rxq_fl0.buf_size: 2048
dev.ix.1.iflib.rxq3.rxq_fl0.credits: 2047
dev.ix.1.iflib.rxq3.rxq_fl0.cidx: 1397
dev.ix.1.iflib.rxq3.rxq_fl0.pidx: 1396
dev.ix.1.iflib.rxq3.cpu: 6
dev.ix.1.iflib.rxq2.rxq_fl0.buf_size: 2048
dev.ix.1.iflib.rxq2.rxq_fl0.credits: 2047
dev.ix.1.iflib.rxq2.rxq_fl0.cidx: 1321
dev.ix.1.iflib.rxq2.rxq_fl0.pidx: 1320
dev.ix.1.iflib.rxq2.cpu: 4
dev.ix.1.iflib.rxq1.rxq_fl0.buf_size: 2048
dev.ix.1.iflib.rxq1.rxq_fl0.credits: 2047
dev.ix.1.iflib.rxq1.rxq_fl0.cidx: 46
dev.ix.1.iflib.rxq1.rxq_fl0.pidx: 45
dev.ix.1.iflib.rxq1.cpu: 2
dev.ix.1.iflib.rxq0.rxq_fl0.buf_size: 2048
dev.ix.1.iflib.rxq0.rxq_fl0.credits: 2047
dev.ix.1.iflib.rxq0.rxq_fl0.cidx: 1810
dev.ix.1.iflib.rxq0.rxq_fl0.pidx: 1809
dev.ix.1.iflib.rxq0.cpu: 0
dev.ix.1.iflib.txq7.r_abdications: 0
dev.ix.1.iflib.txq7.r_restarts: 0
dev.ix.1.iflib.txq7.r_stalls: 0
dev.ix.1.iflib.txq7.r_starts: 1478444
dev.ix.1.iflib.txq7.r_drops: 0
dev.ix.1.iflib.txq7.r_enqueues: 1482194
dev.ix.1.iflib.txq7.ring_state: pidx_head: 1490 pidx_tail: 1490 cidx: 1490 state: IDLE
dev.ix.1.iflib.txq7.txq_cleaned: 2906041
dev.ix.1.iflib.txq7.txq_processed: 2906073
dev.ix.1.iflib.txq7.txq_in_use: 35
dev.ix.1.iflib.txq7.txq_cidx_processed: 2009
dev.ix.1.iflib.txq7.txq_cidx: 1977
dev.ix.1.iflib.txq7.txq_pidx: 2012
dev.ix.1.iflib.txq7.no_tx_dma_setup: 0
dev.ix.1.iflib.txq7.txd_encap_efbig: 0
dev.ix.1.iflib.txq7.tx_map_failed: 0
dev.ix.1.iflib.txq7.no_desc_avail: 0
dev.ix.1.iflib.txq7.mbuf_defrag_failed: 0
dev.ix.1.iflib.txq7.m_pullups: 1361758
dev.ix.1.iflib.txq7.mbuf_defrag: 0
dev.ix.1.iflib.txq7.cpu: 14
dev.ix.1.iflib.txq6.r_abdications: 0
dev.ix.1.iflib.txq6.r_restarts: 0
dev.ix.1.iflib.txq6.r_stalls: 0
dev.ix.1.iflib.txq6.r_starts: 966995
dev.ix.1.iflib.txq6.r_drops: 0
dev.ix.1.iflib.txq6.r_enqueues: 973109
dev.ix.1.iflib.txq6.ring_state: pidx_head: 0309 pidx_tail: 0309 cidx: 0309 state: IDLE
dev.ix.1.iflib.txq6.txq_cleaned: 1842958
dev.ix.1.iflib.txq6.txq_processed: 1842990
dev.ix.1.iflib.txq6.txq_in_use: 34
dev.ix.1.iflib.txq6.txq_cidx_processed: 1838
dev.ix.1.iflib.txq6.txq_cidx: 1806
dev.ix.1.iflib.txq6.txq_pidx: 1840
dev.ix.1.iflib.txq6.no_tx_dma_setup: 0
dev.ix.1.iflib.txq6.txd_encap_efbig: 0
dev.ix.1.iflib.txq6.tx_map_failed: 0
dev.ix.1.iflib.txq6.no_desc_avail: 0
dev.ix.1.iflib.txq6.mbuf_defrag_failed: 0
dev.ix.1.iflib.txq6.m_pullups: 782869
dev.ix.1.iflib.txq6.mbuf_defrag: 0
dev.ix.1.iflib.txq6.cpu: 12
dev.ix.1.iflib.txq5.r_abdications: 0
dev.ix.1.iflib.txq5.r_restarts: 0
dev.ix.1.iflib.txq5.r_stalls: 0
dev.ix.1.iflib.txq5.r_starts: 728984
dev.ix.1.iflib.txq5.r_drops: 0
dev.ix.1.iflib.txq5.r_enqueues: 736304
dev.ix.1.iflib.txq5.ring_state: pidx_head: 1073 pidx_tail: 1073 cidx: 1073 state: IDLE
dev.ix.1.iflib.txq5.txq_cleaned: 1328871
dev.ix.1.iflib.txq5.txq_processed: 1328903
dev.ix.1.iflib.txq5.txq_in_use: 42
dev.ix.1.iflib.txq5.txq_cidx_processed: 1804
dev.ix.1.iflib.txq5.txq_cidx: 1772
dev.ix.1.iflib.txq5.txq_pidx: 1814
dev.ix.1.iflib.txq5.no_tx_dma_setup: 0
dev.ix.1.iflib.txq5.txd_encap_efbig: 0
dev.ix.1.iflib.txq5.tx_map_failed: 0
dev.ix.1.iflib.txq5.no_desc_avail: 0
dev.ix.1.iflib.txq5.mbuf_defrag_failed: 0
dev.ix.1.iflib.txq5.m_pullups: 538142
dev.ix.1.iflib.txq5.mbuf_defrag: 0
dev.ix.1.iflib.txq5.cpu: 10
dev.ix.1.iflib.txq4.r_abdications: 0
dev.ix.1.iflib.txq4.r_restarts: 0
dev.ix.1.iflib.txq4.r_stalls: 0
dev.ix.1.iflib.txq4.r_starts: 1101686
dev.ix.1.iflib.txq4.r_drops: 0
dev.ix.1.iflib.txq4.r_enqueues: 1104924
dev.ix.1.iflib.txq4.ring_state: pidx_head: 1052 pidx_tail: 1052 cidx: 1052 state: IDLE
dev.ix.1.iflib.txq4.txq_cleaned: 2198748
dev.ix.1.iflib.txq4.txq_processed: 2198780
dev.ix.1.iflib.txq4.txq_in_use: 36
dev.ix.1.iflib.txq4.txq_cidx_processed: 1276
dev.ix.1.iflib.txq4.txq_cidx: 1244
dev.ix.1.iflib.txq4.txq_pidx: 1280
dev.ix.1.iflib.txq4.no_tx_dma_setup: 0
dev.ix.1.iflib.txq4.txd_encap_efbig: 0
dev.ix.1.iflib.txq4.tx_map_failed: 0
dev.ix.1.iflib.txq4.no_desc_avail: 0
dev.ix.1.iflib.txq4.mbuf_defrag_failed: 0
dev.ix.1.iflib.txq4.m_pullups: 1053016
dev.ix.1.iflib.txq4.mbuf_defrag: 0
dev.ix.1.iflib.txq4.cpu: 8
dev.ix.1.iflib.txq3.r_abdications: 0
dev.ix.1.iflib.txq3.r_restarts: 0
dev.ix.1.iflib.txq3.r_stalls: 0
dev.ix.1.iflib.txq3.r_starts: 749507
dev.ix.1.iflib.txq3.r_drops: 0
dev.ix.1.iflib.txq3.r_enqueues: 750005
dev.ix.1.iflib.txq3.ring_state: pidx_head: 0437 pidx_tail: 0437 cidx: 0437 state: IDLE
dev.ix.1.iflib.txq3.txq_cleaned: 1362019
dev.ix.1.iflib.txq3.txq_processed: 1362051
dev.ix.1.iflib.txq3.txq_in_use: 36
dev.ix.1.iflib.txq3.txq_cidx_processed: 131
dev.ix.1.iflib.txq3.txq_cidx: 99
dev.ix.1.iflib.txq3.txq_pidx: 135
dev.ix.1.iflib.txq3.no_tx_dma_setup: 0
dev.ix.1.iflib.txq3.txd_encap_efbig: 0
dev.ix.1.iflib.txq3.tx_map_failed: 0
dev.ix.1.iflib.txq3.no_desc_avail: 0
dev.ix.1.iflib.txq3.mbuf_defrag_failed: 0
dev.ix.1.iflib.txq3.m_pullups: 48082
dev.ix.1.iflib.txq3.mbuf_defrag: 0
dev.ix.1.iflib.txq3.cpu: 6
dev.ix.1.iflib.txq2.r_abdications: 0
dev.ix.1.iflib.txq2.r_restarts: 0
dev.ix.1.iflib.txq2.r_stalls: 0
dev.ix.1.iflib.txq2.r_starts: 1509257
dev.ix.1.iflib.txq2.r_drops: 0
dev.ix.1.iflib.txq2.r_enqueues: 1512467
dev.ix.1.iflib.txq2.ring_state: pidx_head: 1043 pidx_tail: 1043 cidx: 1043 state: IDLE
dev.ix.1.iflib.txq2.txq_cleaned: 2970296
dev.ix.1.iflib.txq2.txq_processed: 2970328
dev.ix.1.iflib.txq2.txq_in_use: 38
dev.ix.1.iflib.txq2.txq_cidx_processed: 728
dev.ix.1.iflib.txq2.txq_cidx: 696
dev.ix.1.iflib.txq2.txq_pidx: 734
dev.ix.1.iflib.txq2.no_tx_dma_setup: 0
dev.ix.1.iflib.txq2.txd_encap_efbig: 0
dev.ix.1.iflib.txq2.tx_map_failed: 0
dev.ix.1.iflib.txq2.no_desc_avail: 0
dev.ix.1.iflib.txq2.mbuf_defrag_failed: 0
dev.ix.1.iflib.txq2.m_pullups: 1023062
dev.ix.1.iflib.txq2.mbuf_defrag: 0
dev.ix.1.iflib.txq2.cpu: 4
dev.ix.1.iflib.txq1.r_abdications: 0
dev.ix.1.iflib.txq1.r_restarts: 0
dev.ix.1.iflib.txq1.r_stalls: 0
dev.ix.1.iflib.txq1.r_starts: 703997
dev.ix.1.iflib.txq1.r_drops: 0
dev.ix.1.iflib.txq1.r_enqueues: 706097
dev.ix.1.iflib.txq1.ring_state: pidx_head: 1585 pidx_tail: 1585 cidx: 1585 state: IDLE
dev.ix.1.iflib.txq1.txq_cleaned: 1402497
dev.ix.1.iflib.txq1.txq_processed: 1402529
dev.ix.1.iflib.txq1.txq_in_use: 36
dev.ix.1.iflib.txq1.txq_cidx_processed: 1697
dev.ix.1.iflib.txq1.txq_cidx: 1665
dev.ix.1.iflib.txq1.txq_pidx: 1701
dev.ix.1.iflib.txq1.no_tx_dma_setup: 0
dev.ix.1.iflib.txq1.txd_encap_efbig: 0
dev.ix.1.iflib.txq1.tx_map_failed: 0
dev.ix.1.iflib.txq1.no_desc_avail: 0
dev.ix.1.iflib.txq1.mbuf_defrag_failed: 0
dev.ix.1.iflib.txq1.m_pullups: 658521
dev.ix.1.iflib.txq1.mbuf_defrag: 0
dev.ix.1.iflib.txq1.cpu: 2
dev.ix.1.iflib.txq0.r_abdications: 0
dev.ix.1.iflib.txq0.r_restarts: 0
dev.ix.1.iflib.txq0.r_stalls: 0
dev.ix.1.iflib.txq0.r_starts: 5151774
dev.ix.1.iflib.txq0.r_drops: 0
dev.ix.1.iflib.txq0.r_enqueues: 5154784
dev.ix.1.iflib.txq0.ring_state: pidx_head: 2016 pidx_tail: 2016 cidx: 2016 state: IDLE
dev.ix.1.iflib.txq0.txq_cleaned: 10191127
dev.ix.1.iflib.txq0.txq_processed: 10191159
dev.ix.1.iflib.txq0.txq_in_use: 34
dev.ix.1.iflib.txq0.txq_cidx_processed: 311
dev.ix.1.iflib.txq0.txq_cidx: 279
dev.ix.1.iflib.txq0.txq_pidx: 313
dev.ix.1.iflib.txq0.no_tx_dma_setup: 0
dev.ix.1.iflib.txq0.txd_encap_efbig: 0
dev.ix.1.iflib.txq0.tx_map_failed: 0
dev.ix.1.iflib.txq0.no_desc_avail: 0
dev.ix.1.iflib.txq0.mbuf_defrag_failed: 0
dev.ix.1.iflib.txq0.m_pullups: 5002785
dev.ix.1.iflib.txq0.mbuf_defrag: 0
dev.ix.1.iflib.txq0.cpu: 0
dev.ix.1.iflib.override_nrxds: 0
dev.ix.1.iflib.override_ntxds: 0
dev.ix.1.iflib.allocated_msix_vectors: 9
dev.ix.1.iflib.use_extra_msix_vectors: 0
dev.ix.1.iflib.use_logical_cores: 0
dev.ix.1.iflib.separate_txrx: 0
dev.ix.1.iflib.core_offset: 0
dev.ix.1.iflib.tx_abdicate: 0
dev.ix.1.iflib.rx_budget: 0
dev.ix.1.iflib.disable_msix: 0
dev.ix.1.iflib.override_qs_enable: 0
dev.ix.1.iflib.override_nrxqs: 0
dev.ix.1.iflib.override_ntxqs: 0
dev.ix.1.iflib.driver_version: 4.0.1-k
dev.ix.1.%domain: 0
dev.ix.1.%parent: pci4
dev.ix.1.%pnpinfo: vendor=0x8086 device=0x1563 subvendor=0x8086 subdevice=0x001d class=0x020000
dev.ix.1.%location: slot=0 function=1 dbsf=pci0:3:0:1 handle=\_SB_.PCI0.BR3A.H001
dev.ix.1.%driver: ix
dev.ix.1.%desc: Intel(R) X550-T2
                  1 Reply Last reply Reply Quote 0
                  • stephenw10S
                    stephenw10 Netgate Administrator
                    last edited by

                    Yes and they all seem to be Receive Length Errors. No Out errors shown in the switch either, which might be expected.

                    I would at least try swapping and switch port if you haven't tried that yet.

                    I would also try re-assigning that interface if you can. See if the errors follow it or stay on the NIC.

                    N 1 Reply Last reply Reply Quote 0
                    • N
                      ngr2001 @stephenw10
                      last edited by ngr2001

                      @stephenw10

                      To clarify, you mean move the PF LAN connection to a different port on my switch, see if I still get errors, easy enough ?

                      Part 2, are you suggesting I swap my WAN connection from ix0 and move it to ix1 and vice versa, to see if I still get the same errors or if they follow, i.e perhaps just 1 of the 2 nics on the X550-T2 is bad / faulty ? Or even easier I guess I could re-enable the onboard nics and move the LAN connection over to one of them, granted my NDI does not freak out and pfsense+ goes down, not sure how that would behave.

                      1 Reply Last reply Reply Quote 0
                      • stephenw10S
                        stephenw10 Netgate Administrator
                        last edited by

                        Yes and yes! Swapping the physical port in use at either end is a good test if only to confirm there isn't a fault present.

                        N 1 Reply Last reply Reply Quote 0
                        • N
                          ngr2001 @stephenw10
                          last edited by

                          @stephenw10

                          So I moved the LAN connection to 3 different ports on the switch, no change, still getting the slowly incrementing "Errors In". I also tried 1Gb and 10Gb ports, no difference.

                          I re-enabled the Onboard NIC in BIOS and oddly PFSense froze / halted on boot. Not sure what the deal is but seems like it does not like when i have both the onboard X540 and PCIe X550 enabled at the same time. I dont really want to unrack and rip out my X550 for this test, so not sure where else to go from here.

                          1 Reply Last reply Reply Quote 0
                          • stephenw10S
                            stephenw10 Netgate Administrator
                            last edited by

                            Hmm, odd. Where does it appear to freeze?

                            N 2 Replies Last reply Reply Quote 0
                            • N
                              ngr2001 @stephenw10
                              last edited by

                              @stephenw10

                              Ill have to get a picture for you when I have a change to reboot.

                              1 Reply Last reply Reply Quote 1
                              • N
                                ngr2001 @stephenw10
                                last edited by

                                @stephenw10

                                FYI,

                                I've since swapped LAN NICS, got the onboard working again. I also swapped switches and swapped the patch cable. So everything is different, yet I still get a slow trickle of LAN Errors IN.

                                This count is after 6 Days of uptime.

                                Old setup was X550 with Cisco 3850
                                Current setup is X540 with Cisco 3650
                                Same issue observed with both nics and when the switch was a brocade ICX-7250
                                Same issue observed regardless of NIC speed and connection type, RJ45 vs SPF+

                                Should I be concerned ? I'd love to know why this is happening.

                                1 Reply Last reply Reply Quote 0
                                • stephenw10S
                                  stephenw10 Netgate Administrator
                                  last edited by

                                  I wouldn't be too concerned if you're not seeing any other issues.

                                  Still the same error type shown in the sysctls?

                                  N 1 Reply Last reply Reply Quote 0
                                  • N
                                    ngr2001 @stephenw10
                                    last edited by

                                    @stephenw10

                                    Correct same type, matches up.

                                    1 Reply Last reply Reply Quote 0
                                    • First post
                                      Last post
                                    Copyright 2025 Rubicon Communications LLC (Netgate). All rights reserved.
